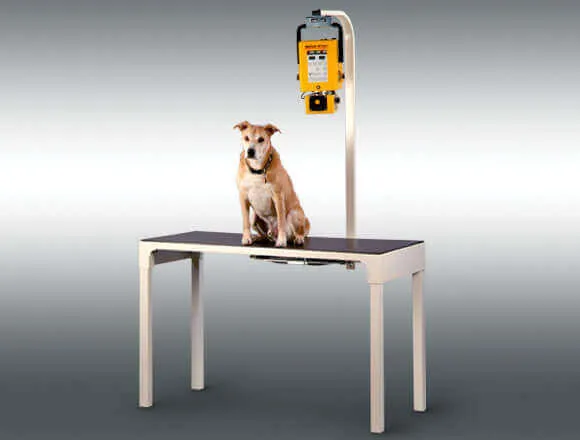

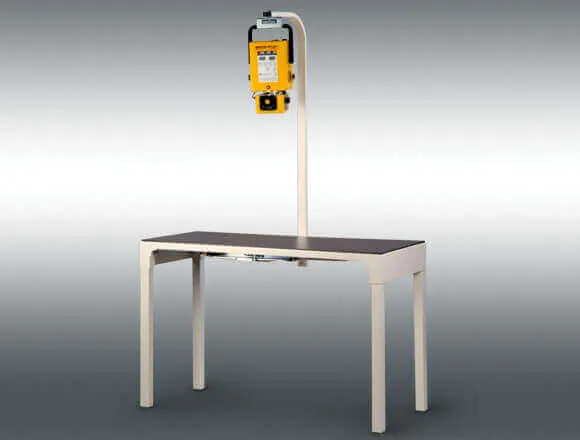

Compact x-ray table with integrated tubestand/cassette tray with longitudinal travel, and grid ready (**grid must be ordered separately). X-ray unit is suspended vertically by the handle above imaging space. Table is easily assembled and requires just 10 square feet of floor space.

Table Dimensions:

• Top Dimensions: 23″ x 54″ (58.4 cm x 137.2 cm)
• Table Height: 33″ (83.8 cm)
• Weight: 140 lbs (64 kg)
• Source to Image Distance (SID): 34″ (86 cm)

Compatible with HF80 , TR90, HF100, HF100 , HF100/30.

**Grid – 14” x 17” (35.6 cm x 43.2 cm), 6:1 ratio, 103 lpi (lines per inch)
Focused grid used to absorb non-image forming x-rays (scatter radiation) and increase the quality of the radiographic image on larger or more dense patients. For use with XRT100 and XRT300 Compact X-ray tables the grid is easily inserted in preconfigured grid slot under the table top.
